Slim

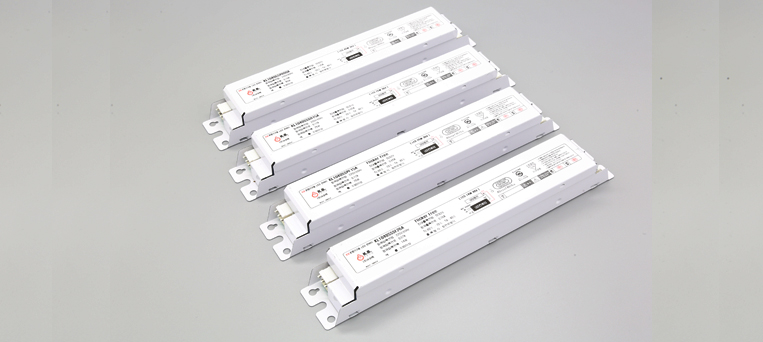

SS Series
[Features]
- SS Series(10w~40w) / SL Series(30w~75w) 는 평판등기구, 레이스웨이 센서 및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | SSPF | SSPR | SSSR | SSSF | SSDD | |
|---|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | 2 Stage Dimming Type | |||
| Feature | Flicker Free | Standard | DC Sensor | DC Sensor Flicker Free |
Standard | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | ||||
| Frequency (주파수) |
60Hz ± 3Hz | |||||
| Power Factor (역률) |
λ > 0.9 | |||||
| Efficiency (효율) |
85% | |||||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | ||||
| Rated Current (출력전류) |
Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1070mA | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | |
| Rated Power (출력전력) |
Min 8.5W ~ Max 34W | Min 8.5W ~ Max 25.5W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) |
Constant Current Type | |||||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | ||||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | |||||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | ||||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | |||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | ||||
| EMI | Compliance to KSC IEC 61000, Class B | |||||

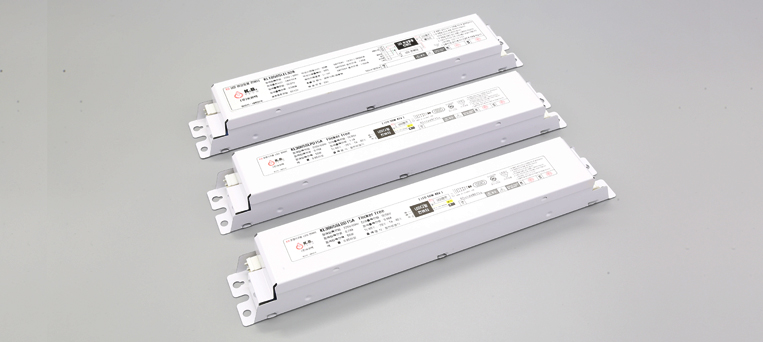

SL Series
[Features]
- SS Series(10w~40w) / SL Series(30w~75w) 는 평판등기구, 레이스웨이 센서 및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | SLPF | SLPR | SLSR | SLSF | SLDD | SLPD | SLEL | |
|---|---|---|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | 2 Stage Dimming Type | PWM Dimming Type | Emergency Lighting Type | |||
| Feature | Flicker Free | Standard | DC Sensor | DC Sensor Flicker Free |
Standard | Standard | Emergency Lighting | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | ||||||
| Frequency (주파수) |
60Hz ± 3Hz | |||||||
| Power Factor (역률) |
λ > 0.9 | |||||||
| Efficiency (효율) |
85% | |||||||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | ||||||
| Rated Current (출력전류) |
Min 530mA ~ Max 2660mA | Min 530mA ~ Max 2660mA | Min 530mA ~ Max 2660mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2660mA | Min 530mA ~ Max 2660mA | Min 88mA ~ Max 710mA | |
| Rated Power (출력전력) |
Min 25.5W ~ Max 64W | Min 25.5W ~ Max 64W | Min 25.5W ~ Max 64W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 64W | Min 25.5W ~ Max 64W | Min 4W ~ Max 17W | |
| Output Method (출력방식) |
Constant Current Type | |||||||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | ||||||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | |||||||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | ||||||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | |||||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | ||||||
| EMI | Compliance to KSC IEC 61000, Class B | |||||||
