Ultra-Slim

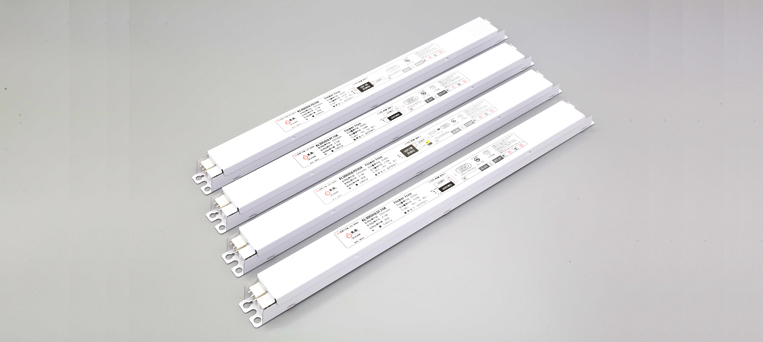

UL Series
[Features]
- US, UP, UN Series(10w~40w) / UM, UL Series(30w~65w)는 평판등기구, 레이스웨이, 센서및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | ULPF | ULSF | ULPD | UL2D | |
|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | PWM Dimming Type | 2 Stage Dimming Type | |
| Feature | Flicker Free | DC Sensor Flicker Free |
Standard | Standard | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | |||
| Frequency (주파수) |
60Hz ± 3Hz | ||||
| Power Factor (역률) |
λ > 0.9 | ||||
| Efficiency (효율) |
85% | ||||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | |||
| Rated Current (출력전류) |
Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min A ~ Max A | |
| Rated Power (출력전력) |
Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min W ~ Max W | |
| Output Method (출력방식) |
Constant Current Type | ||||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | |||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | ||||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | |||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | ||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | |||
| EMI | Compliance to KSC IEC 61000, Class B | ||||

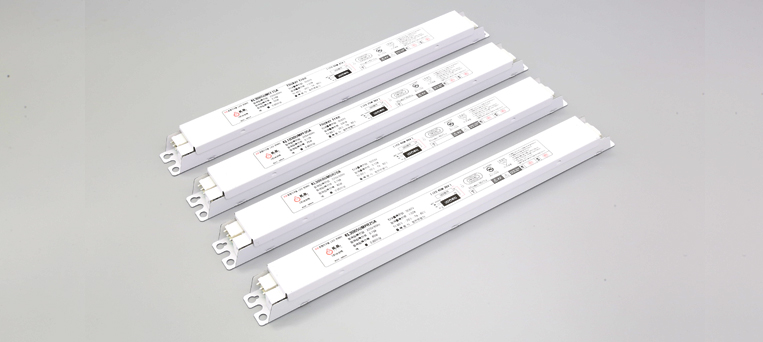

UM Series
[Features]
- US, UP, UN Series(10w~40w) / UM, UL Series(30w~65w)는 평판등기구, 레이스웨이, 센서및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | UMPF | UMPR | UMSR | |
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | Secondary Side Regulation Type | |
| Feature | Flicker Free | Standard | DC Sensor | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | ||
| Frequency (주파수) |
60Hz ± 3Hz | |||
| Power Factor (역률) |
λ > 0.9 | |||
| Efficiency (효율) |
85% | |||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) |
Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2130mA | |
| Rated Power (출력전력) |
Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 51W | |
| Output Method (출력방식) |
Constant Current Type | |||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | ||
| EMI | Compliance to KSC IEC 61000, Class B | |||

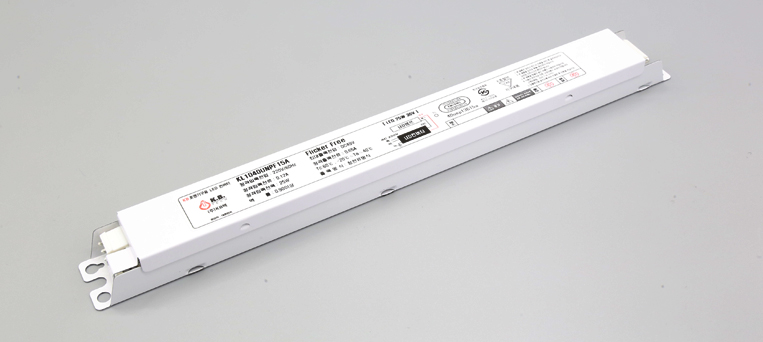

UN Series
[Features]
- US, UP, UN Series(10w~40w) / UM, UL Series(30w~65w)는 평판등기구, 레이스웨이, 센서및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | UNPF | UNPR | ||
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | ||
| Feature | Flicker Free | Standard | ||
| Input | Voltage (입력전압) |
198 ~ 242 VAC | ||
| Frequency (주파수) |
60Hz ± 3Hz | |||
| Power Factor (역률) |
λ > 0.9 | |||
| Efficiency (효율) |
85% | |||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) |
Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | ||
| Rated Power (출력전력) |
Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | ||
| Output Method (출력방식) |
Constant Current Type | |||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | ||
| EMI | Compliance to KSC IEC 61000, Class B | |||
UP Series
[Features]
- US, UP, UN Series(10w~40w) / UM, UL Series(30w~65w)는 평판등기구, 레이스웨이, 센서및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | UPPR | UPSR | |
|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | |
| Feature | Standard | DC Sensor | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | |
| Frequency (주파수) |
60Hz ± 3Hz | ||
| Power Factor (역률) |
λ > 0.9 | ||
| Efficiency (효율) |
85% | ||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | |
| Rated Current (출력전류) |
Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | |
| Rated Power (출력전력) |
Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) |
Constant Current Type | ||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | |
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | ||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | |
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | ||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | |
| EMI | Compliance to KSC IEC 61000, Class B | ||

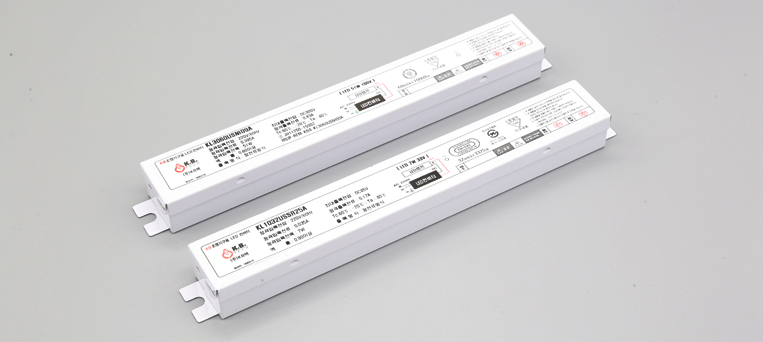

US Series
[Features]
- US, UP, UN Series(10w~40w) / UM, UL Series(30w~65w)는 평판등기구, 레이스웨이, 센서및 지하주차장 디밍용으로 사용
- 절연제품, Flicker Free제품, Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | USPR | USSR | USNI | |
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | Non Isolation Type | |
| Feature | Standard | DC Sensor | Standard | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | ||
| Frequency (주파수) |
60Hz ± 3Hz | |||
| Power Factor (역률) |
λ > 0.9 | |||
| Efficiency (효율) |
85% | |||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) |
Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 40mA ~ Max 800mA | |
| Rated Power (출력전력) |
Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 51W | |
| Output Method (출력방식) |
Constant Current Type | |||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | ||
| EMI | Compliance to KSC IEC 61000, Class B | |||
