Bar

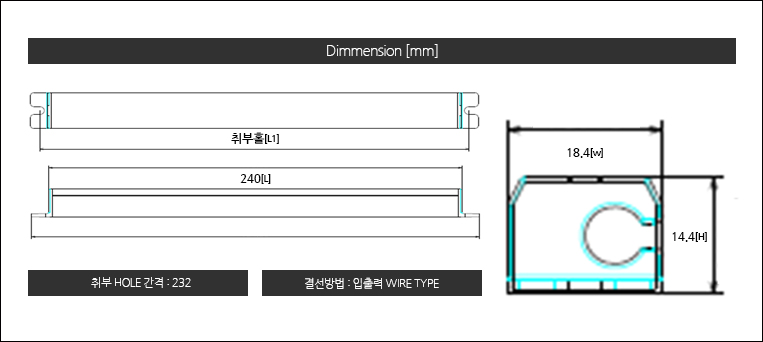

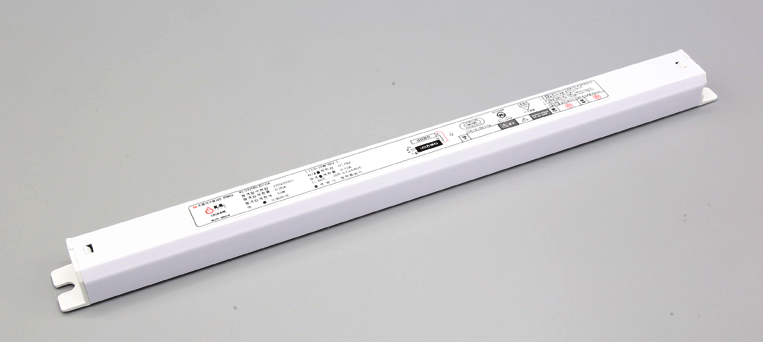

BL Series

[Features]
  • Bar Type(BS, BL Series)은 간접등 등기구내에 사용
  • 반달형 MSSR, MMSR은 원형센서등 및 원형직부등에 적용
  • MS Series는 최대 15w, MM Series는 최대 20w까지 동작
DESCRIPTION BLPR BLBI
Circuit Type Primary Side Regulation Type Non Isolation Type
Feature Standard Standard
Input Voltage
(입력전압)
198 ~ 242 VAC
Frequency
(주파수)
60Hz ± 3Hz
Power Factor
(역률)
λ > 0.9
Efficiency
(효율)
85%
Output DC Voltage
(출력전압)
24Vdc ~ 48Vdc
Rated Current
(출력전류)
Min 89mA ~ Max 710mA Min 89mA ~ Max 710mA
Rated Power
(출력전력)
Min 4W ~ Max 17W Min 4W ~ Max 17W
Output Method
(출력방식)
Constant Current Type
Protection Over Load
(과부하)
Protection Type : Shut Down operation Voltage, Restart
Over Voltage
(과전압)
Protection Type : Shut Down operation Voltage, Restart
Environment Operating Temperature
(사용온도)
-20℃ ~ 50℃
Storage Temp & Humidity
(보관조건)
-20℃ ~ 70℃ / 10 ~ 90%RH
Safety & EMI Safety Standards KS C 7655, 10-IS 0256
EMI Compliance to KSC IEC 61000, Class B

BL Series PDF download

* 상세사항은 당사 영업부에 문의 바랍니다.

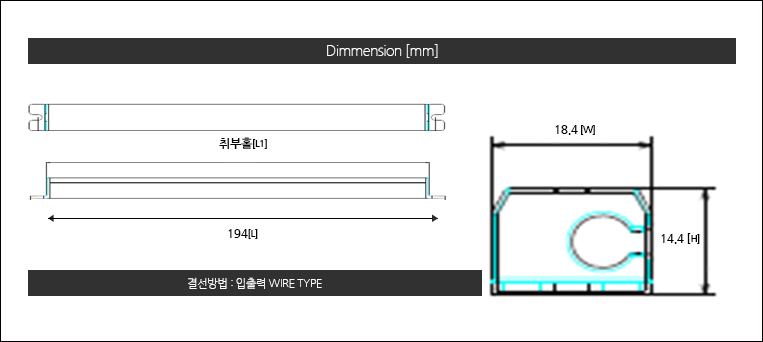

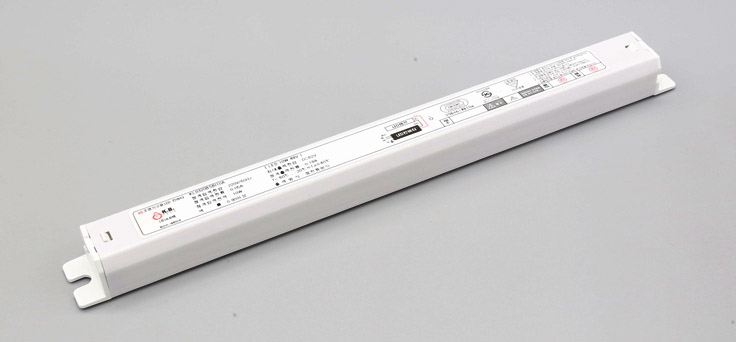

BS Series

[Features]
  • Bar Type(BS, BL Series)은 간접등 등기구내에 사용
  • 반달형 MSSR, MMSR은 원형센서등 및 원형직부등에 적용
  • MS Series는 최대 15w, MM Series는 최대 20w까지 동작
DESCRIPTION BSPR BSBI
Circuit Type Primary Side Regulation Type Non Isolation Type
Feature Standard Standard
Input Voltage
(입력전압)
198 ~ 242 VAC
Frequency
(주파수)
60Hz ± 3Hz
Power Factor
(역률)
λ > 0.9
Efficiency
(효율)
85%
Output DC Voltage
(출력전압)
24Vdc ~ 48Vdc
Rated Current
(출력전류)
Min 53mA ~ Max 710mA Min 53mA ~ Max 710mA
Rated Power
(출력전력)
Min 2.5W ~ Max 17W Min 2.5W ~ Max 17W
Output Method
(출력방식)
Constant Current Type
Protection Over Load
(과부하)
Protection Type : Shut Down operation Voltage, Restart
Over Voltage
(과전압)
Protection Type : Shut Down operation Voltage, Restart
Environment Operating Temperature
(사용온도)
-20℃ ~ 50℃
Storage Temp & Humidity
(보관조건)
-20℃ ~ 70℃ / 10 ~ 90%RH
Safety & EMI Safety Standards KS C 7655, 10-IS 0256
EMI Compliance to KSC IEC 61000, Class B

BS Series PDF download

* 상세사항은 당사 영업부에 문의 바랍니다.
