Outdoor

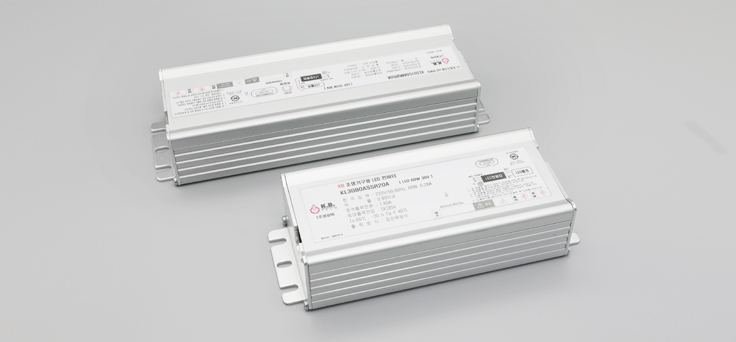

Outdoor Series

[Features]
  • OutDoor Type (ASSR, AMQR Series)은 옥외용 제품
  • 높은정격 (~150w)의 가로등, 보안등, 공장등에 주로 사용
  • 충진형 제품으로 방진, 방습, 방수(IP)가 가능한 고효율, 고신뢰성의 LED컨버터
DESCRIPTION ASSR AMQR
Circuit Type Secondary Side Regulation Type Secondary Side Regulation Type
Feature Standard Standard
Dimmension [ mm ] L x W x H 169 x 67 x 40 ( Hole : 158 ) 215 x 67 x 46 ( Hole : 200 )
Input Voltage
(입력전압)
198 ~ 242 VAC
Frequency
(주파수)
60Hz ± 3Hz
Power Factor
(역률)
λ > 0.9
Efficiency
(효율)
85%
Output DC Voltage
(출력전압)
24Vdc ~ 48Vdc
Rated Current
(출력전류)
Min 530mA ~ Max 2830mA Min 1300mA ~ Max 3750mA
Rated Power
(출력전력)
Min 30W ~ Max 80W Min 50W ~ Max 150W
Output Method
(출력방식)
Constant Current Type
Protection Over Load
(과부하)
Protection Type : Shut Down operation Voltage, Restart
Over Voltage
(과전압)
Protection Type : Shut Down operation Voltage, Restart
Environment Operating Temperature
(사용온도)
-20℃ ~ 50℃
Storage Temp & Humidity
(보관조건)
-20℃ ~ 70℃ / 10 ~ 100%RH
Safety & EMI Safety Standards KS C 7655, 10-IS 0256
EMI Compliance to KSC IEC 61000, Class B

Outdoor Series PDF download

* 상세사항은 당사 영업부에 문의 바랍니다.
