Half Moon

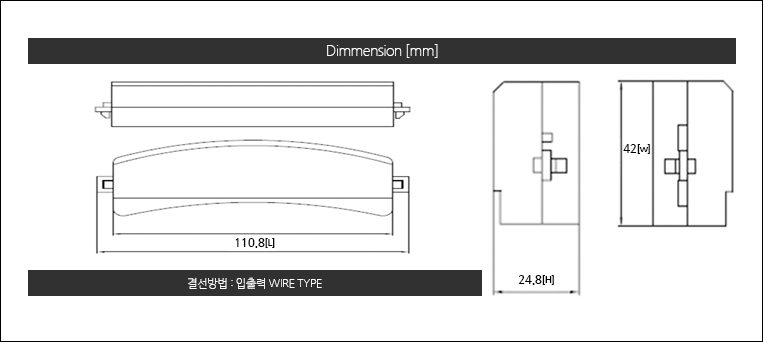

MS Series

[Features]
  • Bar Type(BS, BL Series)은 간접등 등기구내에 사용
  • 반달형 MSSR, MMSR은 원형센서등 및 원형직부등에 적용
  • MS Series는 최대 15w, MM Series는 최대 20w까지 동작
DESCRIPTION MSPR MSSR
Circuit Type Primary Side Regulation Type Secondary Side Regulation Type
Feature Standard DC Sensor
Input Voltage
(입력전압)		 198 ~ 242 VAC
Frequency
(주파수)		 60Hz ± 3Hz
Power Factor
(역률)		 λ > 0.9
Efficiency
(효율)		 85%
Output DC Voltage
(출력전압)		 24Vdc ~ 48Vdc
Rated Current
(출력전류)		 Min 90mA ~ Max 530mA Min 90mA ~ Max 530mA
Rated Power
(출력전력)		 Min 4W ~ Max 13W Min 4W ~ Max 13W
Output Method
(출력방식)		 Constant Current Type
Protection Over Load
(과부하)		 Protection Type : Shut Down operation Voltage, Restart
Over Voltage
(과전압)		 Protection Type : Shut Down operation Voltage, Restart
Environment Operating Temperature
(사용온도)		 -20℃ ~ 50℃
Storage Temp & Humidity
(보관조건)		 -20℃ ~ 70℃ / 10 ~ 90%RH
Safety & EMI Safety Standards KS C 7655, 10-IS 0256
EMI Compliance to KSC IEC 61000, Class B

MS Series PDF download

* 상세사항은 당사 영업부에 문의 바랍니다.

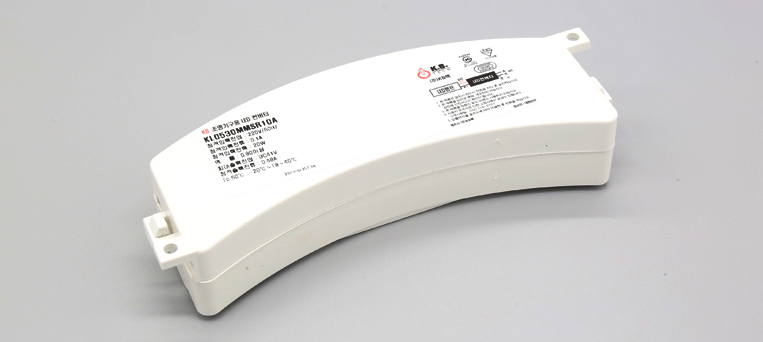

MM Series

[Features]
  • Bar Type(BS, BL Series)은 간접등 등기구내에 사용
  • 반달형 MSSR, MMSR은 원형센서등 및 원형직부등에 적용
  • MS Series는 최대 15w, MM Series는 최대 20w까지 동작
DESCRIPTION MMSR
Circuit Type Secondary Side Regulation Type
Feature DC Sensor
Input Voltage
(입력전압)		 198 ~ 242 VAC
Frequency
(주파수)		 60Hz ± 3Hz
Power Factor
(역률)		 λ > 0.9
Efficiency
(효율)		 85%
Output DC Voltage
(출력전압)		 24Vdc ~ 48Vdc
Rated Current
(출력전류)		 Min 89mA ~ Max 710mA
Rated Power
(출력전력)		 Min 4W ~ Max 17W
Output Method
(출력방식)		 Constant Current Type
Protection Over Load
(과부하)		 Protection Type : Shut Down operation Voltage, Restart
Over Voltage
(과전압)		 Protection Type : Shut Down operation Voltage, Restart
Environment Operating Temperature
(사용온도)		 -20℃ ~ 50℃
Storage Temp & Humidity
(보관조건)		 -20℃ ~ 70℃ / 10 ~ 90%RH
Safety & EMI Safety Standards KS C 7655, 10-IS 0256
EMI Compliance to KSC IEC 61000, Class B

MM Series PDF download

* 상세사항은 당사 영업부에 문의 바랍니다.
