Edge & Ultra Shallow

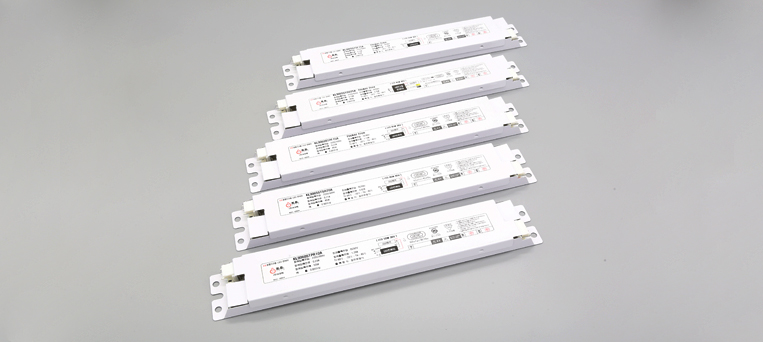

ST Series
[Features]
- UT Series(10w~40w) / ST Series(30w~65w)는 평판등기구, 엣지용 등기구나 높이에 제한이 있는 장소에 사용
- 절연제품, Flicker Free제품, Dimming제품, 색온도Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | STPF | STPR | STSR | STSF | STFF | STDD | |
|---|---|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | Power Factor Correction Primary Side Regulation Type |
2 Stage Dimming Type | |||
| Feature | Flicker Free | Standard | DC Sensor | DC Sensor Flicker Free |
Flicker Free | Standard | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | |||||
| Frequency (주파수) |
60Hz ± 3Hz | ||||||
| Power Factor (역률) |
λ > 0.9 | ||||||
| Efficiency (효율) |
85% | ||||||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | |||||
| Rated Current (출력전류) |
Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2130mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | |
| Rated Power (출력전력) |
Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 51W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | |
| Output Method (출력방식) |
Constant Current Type | ||||||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | |||||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | ||||||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | |||||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | ||||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | |||||
| EMI | Compliance to KSC IEC 61000, Class B | ||||||

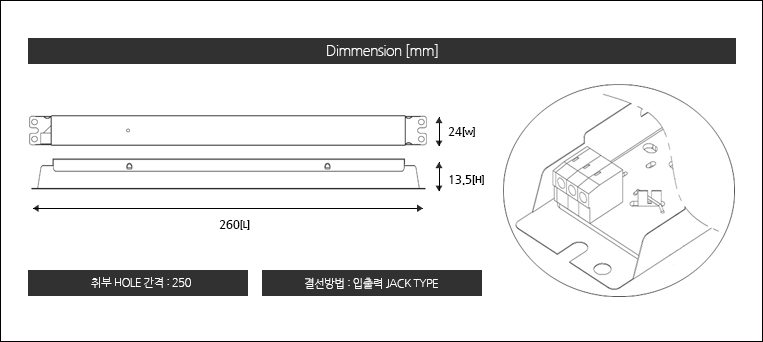

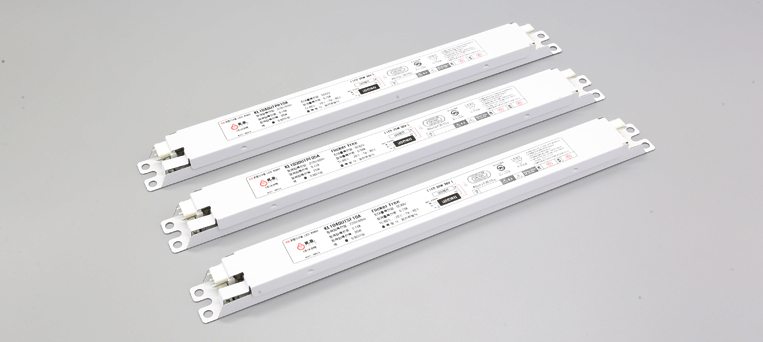

UT Series
[Features]
- UT Series(10w~40w) / ST Series(30w~65w)는 평판등기구, 엣지용 등기구나 높이에 제한이 있는 장소에 사용
- 절연제품, Flicker Free제품, Dimming제품, 색온도Dimming제품으로 구성
- 고효율, 고신뢰성의 LED컨버터
- KS 및 고효율기준을 만족시키는 LED컨버터
| DESCRIPTION | UTPF | UTPR | UTSF | UTFF | |
|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | Power Factor Correction Primary Side Regulation Type | ||
| Feature | Flicker Free | Standard | DC Sensor Flicker Free |
Flicker Free | |
| Input | Voltage (입력전압) |
198 ~ 242 VAC | |||
| Frequency (주파수) |
60Hz ± 3Hz | ||||
| Power Factor (역률) |
λ > 0.9 | ||||
| Efficiency (효율) |
85% | ||||
| Output | DC Voltage (출력전압) |
24Vdc ~ 48Vdc | |||
| Rated Current (출력전류) |
Min 180mA ~ Max 1420mA | Min 180mA ~ Max 1420mA | Min 180mA ~ Max 1420mA | Min 180mA ~ Max 1420mA | |
| Rated Power (출력전력) |
Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) |
Constant Current Type | ||||
| Protection | Over Load (과부하) |
Protection Type : Shut Down operation Voltage, Restart | |||
| Over Voltage (과전압) |
Protection Type : Shut Down operation Voltage, Restart | ||||
| Environment | Operating Temperature (사용온도) |
-20℃ ~ 50℃ | |||
| Storage Temp & Humidity (보관조건) |
-20℃ ~ 70℃ / 10 ~ 90%RH | ||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 | |||
| EMI | Compliance to KSC IEC 61000, Class B | ||||
